Features / JETDIELINE

Find the right packaging shape and fit it to your product

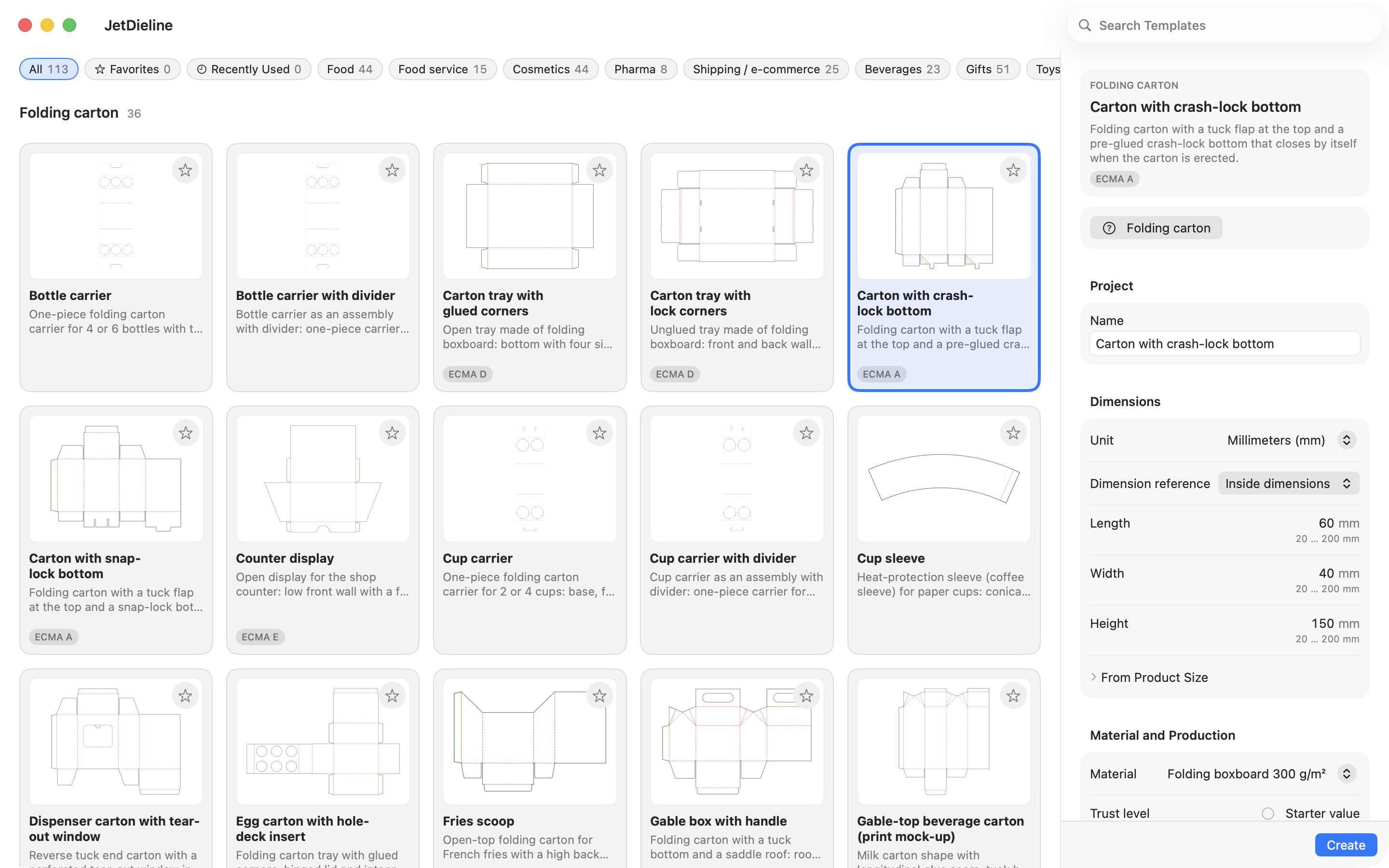

You start with a finished construction rather than a blank canvas. The catalog contains 113 entries. After choosing one, you enter your dimensions and the dieline adjusts to match.

A catalog instead of a blank page

The catalog covers 108 constructions and 5 assemblies made up of several parts, arranged in 14 families. These include folding cartons, corrugated shipping boxes, mailers, sleeves, trays, displays, envelopes, labels, pouches and rigid boxes. You can filter by 15 applications, for example food, cosmetics or shipping.

Enter dimensions, recalculate the dieline

Every template is built parametrically. Change the length, width and height, and the cut and crease lines are recalculated. You define whether a dimension refers to the inside, the outside or the crease line. That keeps it clear what will actually fit into the box.

From product to box

The product fit calculator starts from the product. Enter the product dimension and the clearance you want, and you get the matching box dimensions. Units are millimetres, centimetres and inches.

At a glance

113 catalog entries: 108 constructions and 5 assemblies
14 families and 15 applications as filters
Choose the dimension basis: inside, outside or crease-to-crease dimension
Units: millimetres, centimetres and inches

Frequently asked questions

Can I set a template to any dimensions?

Each template has a sensible dimension range. If an entry makes the construction unusable, the check shows a finding with an explanation. Confirm the actual manufacturability with your printer.

Are the templates named after a standard?

The constructions are our own templates. For corrugated board, some follow common FEFCO styles and are similar to them. The binding reference is your printer's dimension sheet.

What you should know

JetDieline supports you with construction, design and checks. It does not replace approval by your printer or a built sample. On-screen and 3D displays are not colour-accurate.
